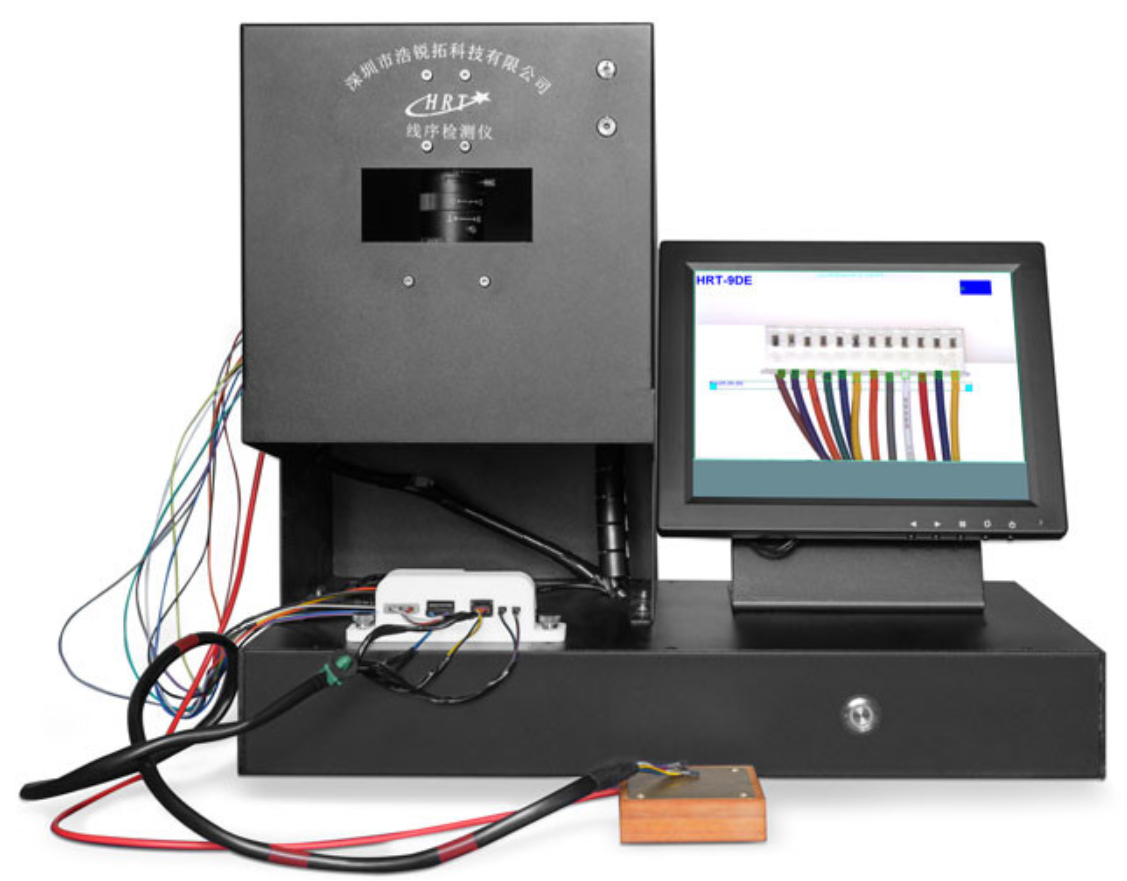

Wire Sequence / Circuit Verification
Confirm circuit relationships according to the inspection specification.
BUILD-TO-PRINT / PROCESS CAPABILITIES
Custom Wire Harness Manufacturing Capabilities
XSD Harness provides build-to-print manufacturing for custom wire harnesses and cable assemblies, with in-house capabilities covering wire preparation, terminal processing, connector assembly, soldering, molding, harness assembly and inspection. Manufacturing processes are selected according to customer drawings, BOMs, electrical specifications and approved quality requirements.
XSD Harness is the specialized wire harness and cable assembly manufacturing business of Dongguan XSD Cable Technology Co., Ltd.
MANUFACTURING BASIS
Approved drawing + BOM + inspection requirements
THE MANUFACTURING ROUTE
From Prepared Wire to Finished Harness Assembly
Custom wire harness production involves more than connecting wires and terminals. Each project may require different wire preparation, termination, protection, routing, labeling and inspection processes. XSD selects the manufacturing route according to the approved drawing, BOM, component specification and application requirements.
- 01
Wire Preparation
- 02
Terminal Processing
- 03
Connector / Solder Assembly
- 04
Harness Routing & Assembly
- 05
Molding / Protection
- 06
Electrical & Mechanical Inspection
- 07
Final Inspection
Illustrative production route, not a mandatory sequence for every product. Soldering, molding and individual tests are included only when required by the approved assembly.
XSD Harness uses automatic wire cutting and terminal crimping equipment in custom wire harness production.
WIRE PREPARATION
Wire Cutting, Stripping & Preparation
Wire preparation establishes the dimensional foundation for the finished harness. Depending on the approved specification, wires are cut to defined lengths and prepared for the required terminal, connector, splice or soldering operation.

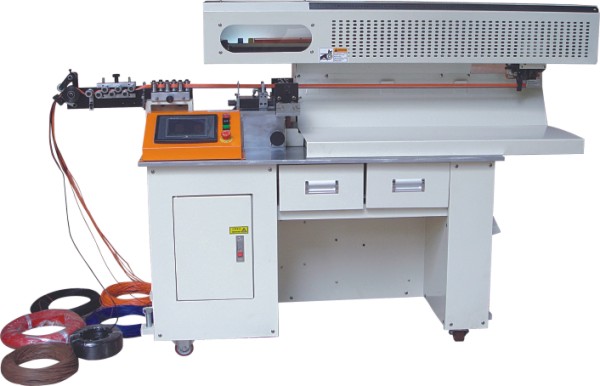

Automatic wire cutting equipment and tube cutters support the preparation stage. Cutting and stripping settings are reviewed with the conductor, insulation and downstream connection requirements rather than treated as a single setting for every wire.
Preparation parameters
- Wire length and project-specific dimensional requirements
- Strip length and conductor preparation
- Jacket preparation for the specified connection
- Tube / sleeve cutting
- Wire identification and the required marking method
XSD uses automatic wire cutting equipment as part of its custom wire harness production process.
TERMINATION
Terminal Crimping & Termination
Terminal crimping is a critical connection process in wire harness manufacturing. XSD uses automatic and semi-automatic terminal processing equipment depending on wire size, terminal geometry, production volume and project requirements.

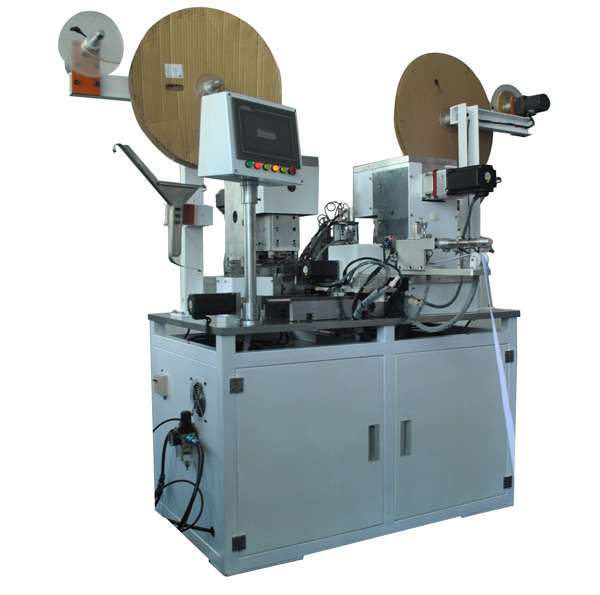

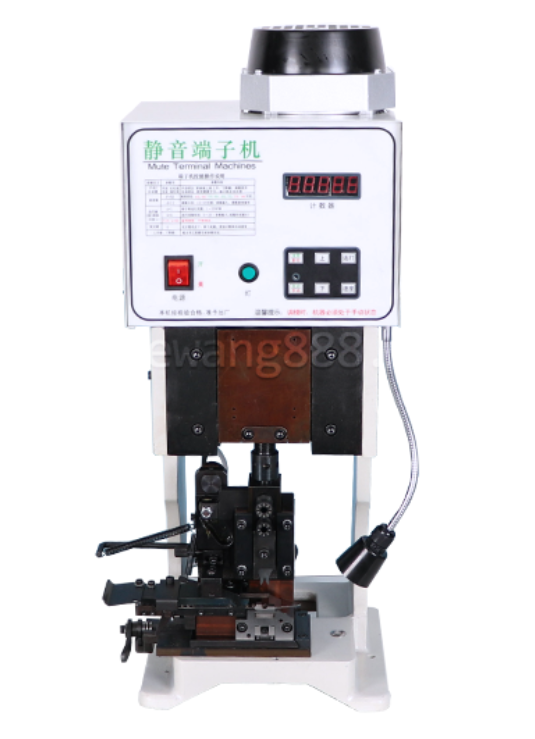

Automatic equipment supports the selected production route; semi-automatic processing provides an alternative for assemblies and terminals requiring a different setup. A copper strip terminal machine is also documented for selected terminal connections.
What is controlled
- Wire specification and terminal part number
- Strip dimensions and crimp geometry
- Connection strength
- Terminal insertion / orientation
- Inspection requirements defined for the project
Crimp requirements are evaluated against the approved terminal and project specification. No universal crimp tolerance is claimed.
CONNECTOR INTEGRATION
Connector Assembly & Terminal Insertion
After wire termination, terminals and components are assembled into the specified connector housings according to the approved circuit configuration. Depending on product complexity, connector assembly may combine automated processing with skilled manual operations.
The company profile lists a terminal insertion machine. Equipment selection and manual assembly instructions are reviewed against the actual connector, circuit arrangement and approved component specification.
Assembly details
- Connector housing insertion and terminal orientation
- Cavity position and component identification
- Secondary locks and seals, where applicable
- Branch layout and labels
SELECTED INTERFACES
Soldering & Specialized Cable Processing
Some cable assemblies require soldered, communication or specialized connector interfaces rather than conventional terminal crimping alone. XSD’s documented equipment includes RJ45 crimping and HDMI high-frequency soldering equipment, supporting selected electronic and signal cable assembly requirements.
Selected processing
- RJ45 connector processing
- Selected soldered cable assemblies
- HDMI-related assembly processing
- Signal cable connections
- Customer-specific termination processes
Connection methods and inspection criteria are selected for the approved components and assembly design. Particular data bandwidths or signal-integrity performance are not assumed from the presence of processing equipment.
Specialized Wire Processing: twisted pairs, wire grouping and wire marking can be reviewed against the project drawing. Twist geometry and acceptance criteria require project-specific agreement.
MOLDED CONNECTIONS
Cable Overmolding & Injection Molding
Depending on the product design, molding can be integrated into the wire harness or cable assembly manufacturing process to provide mechanical support, insulation, strain relief, component integration or environmental protection.
Applications reviewed
- Connector overmolding and strain relief
- Cable entry protection and component encapsulation
- Custom molded interface
- Low-pressure protection for selected assemblies
Design-dependent protection
Environmental performance depends on the approved design, materials and validation requirements.
Waterproofing, IP67 / IP68, chemical resistance and specified flame ratings are not automatic outcomes of molding. Any required rating must be supported by the finished product design and validation.
ROUTING & INTEGRATION
Wire Harness Assembly & Routing

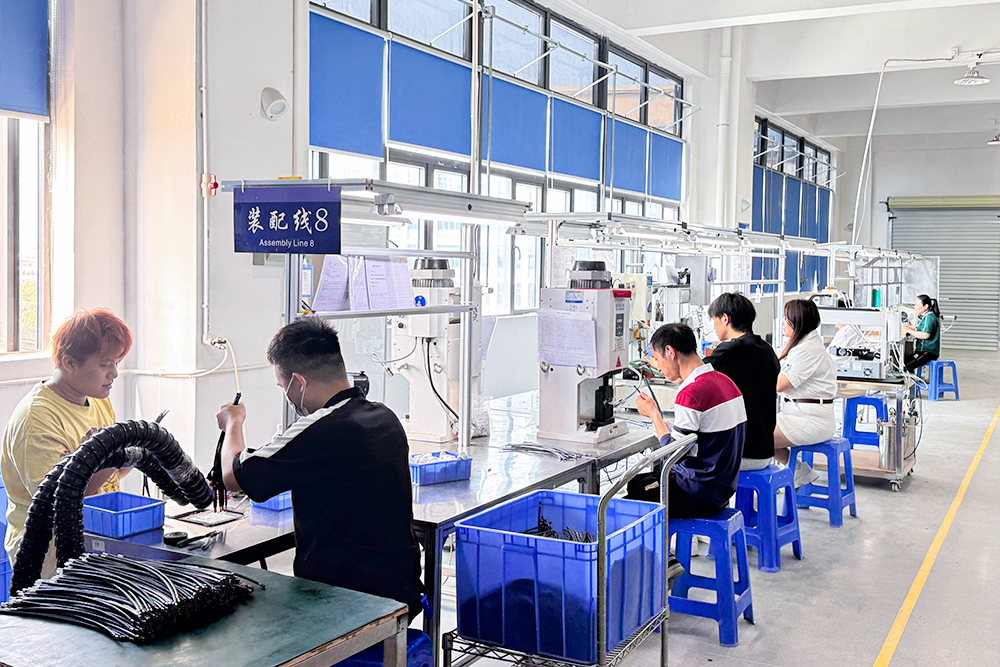

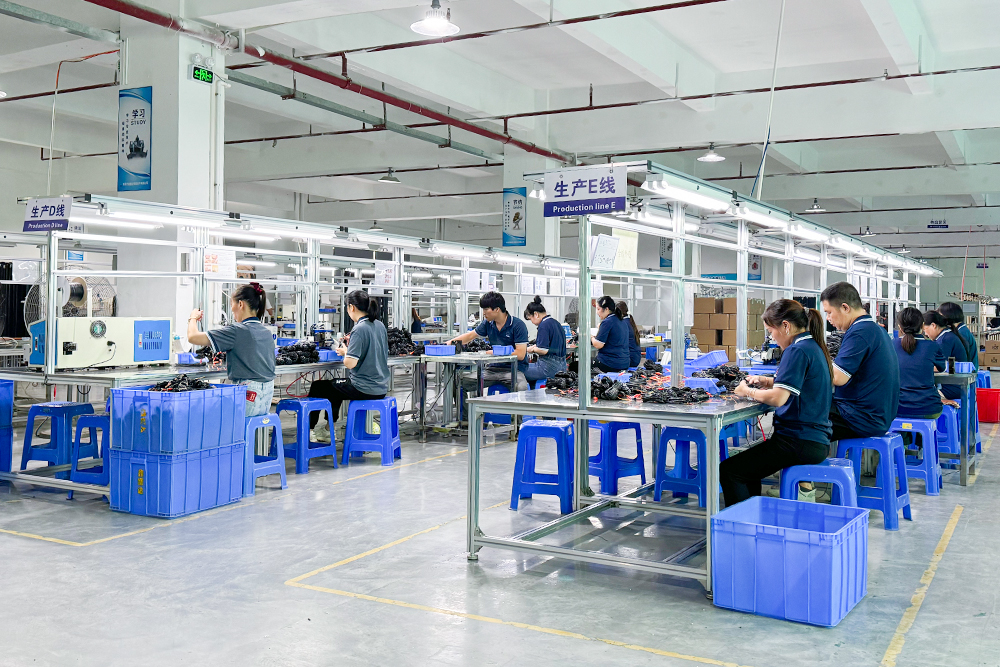

Harness assembly combines prepared wires, terminals, connectors and protective components into the customer-approved electrical architecture. Simple assemblies may contain only a few circuits, while complex harnesses may incorporate multiple branches, different wire gauges, connectors, sleeves, labels and mounting components.
Harness routing, branch lengths and connector locations are checked against the drawing. Fixture-assisted assembly may be used when the approved configuration requires a controlled layout; the assembly method depends on complexity and production needs.
Assembly operations
- Harness routing and branch positioning
- Cable tying and protective sleeving
- Heat shrink and tube installation
- Labels / identification
- Fixture-assisted assembly and final connector installation
FINISHING THE ASSEMBLY
Secondary Processing & Cable Protection
Secondary processing brings the assembly into its specified installation configuration. Protective components, wire identification and mounting details are selected to suit the approved routing and application environment.
Protection
- Cable bundling and wire tying
- Heat-shrink tubing / heat-gun processing
- Protective sleeving and tube installation
Identification & fit
- Labeling and wire marking
- Wire grouping / specified twisted pairs
- Customer-specific fixture-assisted positioning
Twisting is treated as a selected sub-capability, not a universal step. Braiding and shield preparation are not presented as confirmed in-house capabilities without equipment and process evidence.

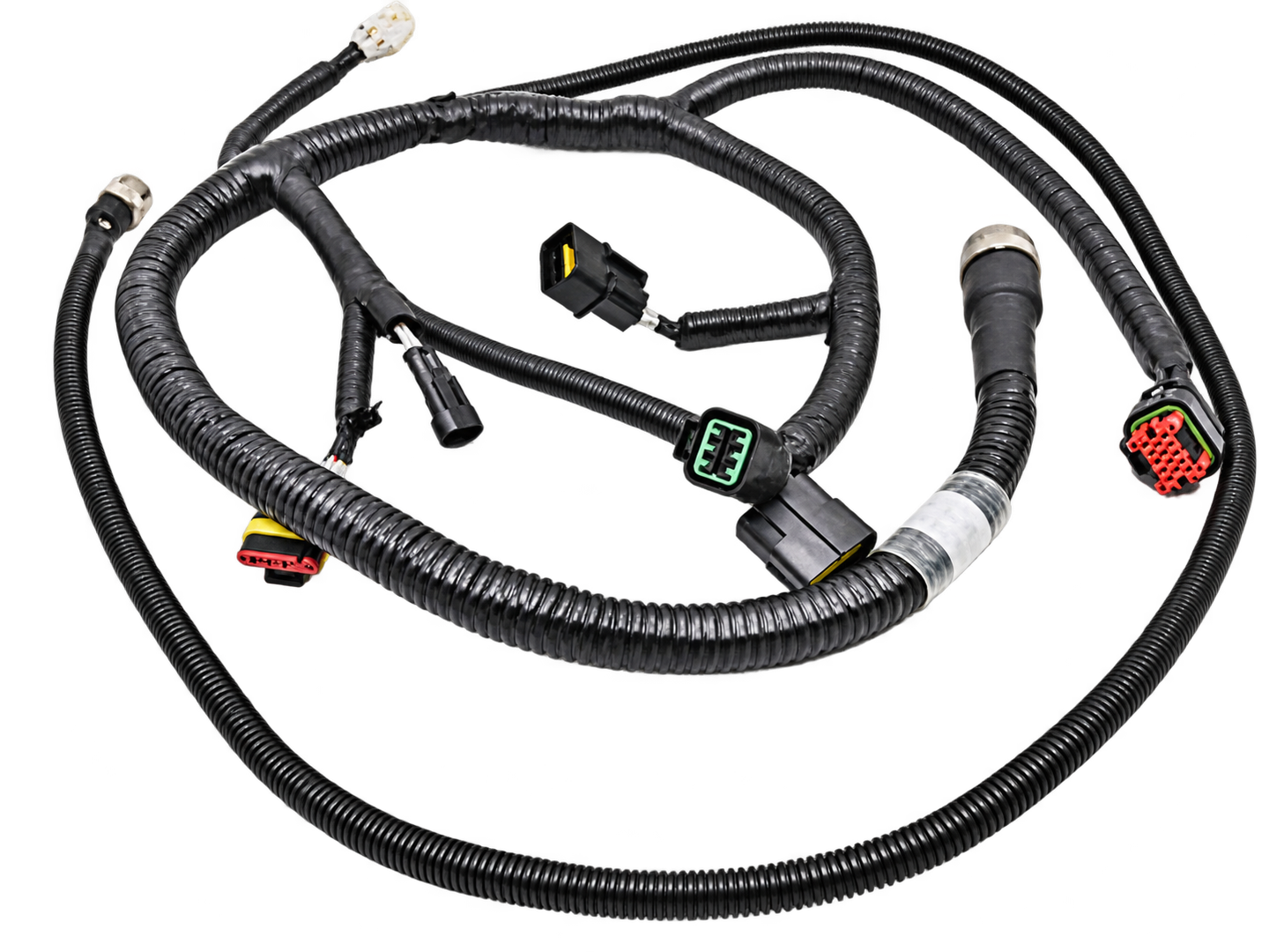

A finished harness example illustrates branch protection and connector integration; it is not a substitute for a project-specific drawing or test report.
INSPECTION RESOURCES
Wire Harness Testing & Inspection Capabilities
The company’s documented inspection resources include wire sequence testing, DC resistance testing, terminal cross-section analysis and tensile testing. Electrical, visual, dimensional, mechanical and durability checks are selected to match the product and customer requirements.
Electrical inspection
Circuit relationships and electrical resistance where required.
Crimp & mechanical inspection
Crimp geometry, connection strength and specified mating forces.
Environmental / durability resources
Bending and salt spray testing to an agreed method and acceptance criteria.

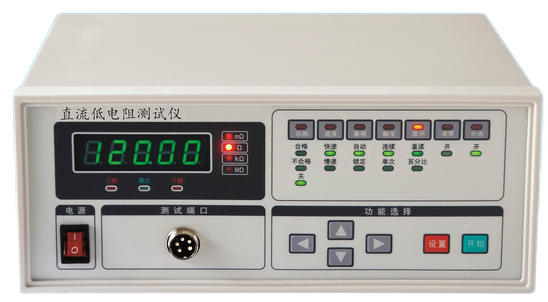

DC Resistance Testing
Evaluate electrical resistance where required by the approved test criteria.

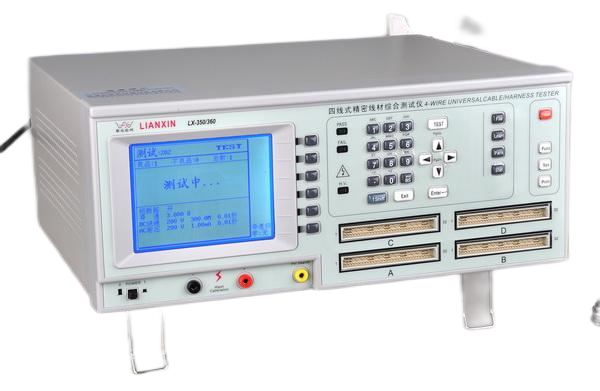

Harness Electrical Inspection
Perform electrical inspection according to project requirements.

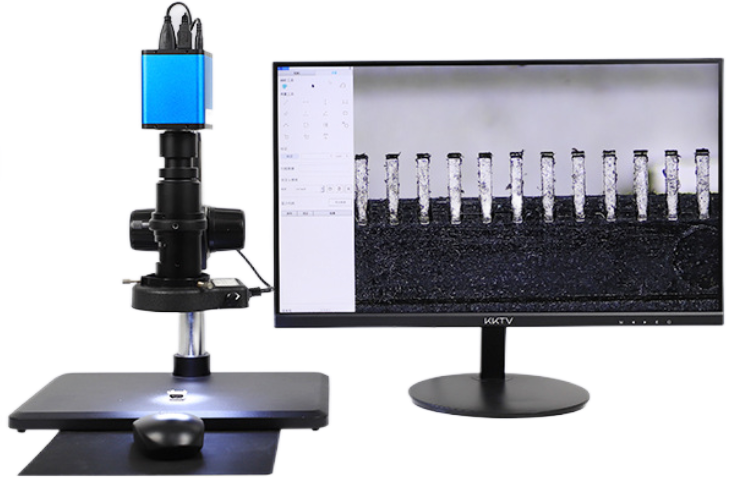

CCD Inspection
Use image-based inspection for specified component or assembly features.

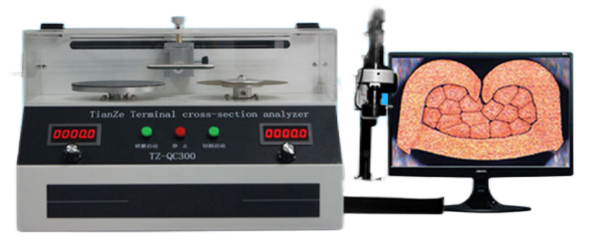

Terminal Cross-Section Analysis
Review crimp geometry where applicable against the approved terminal specification.

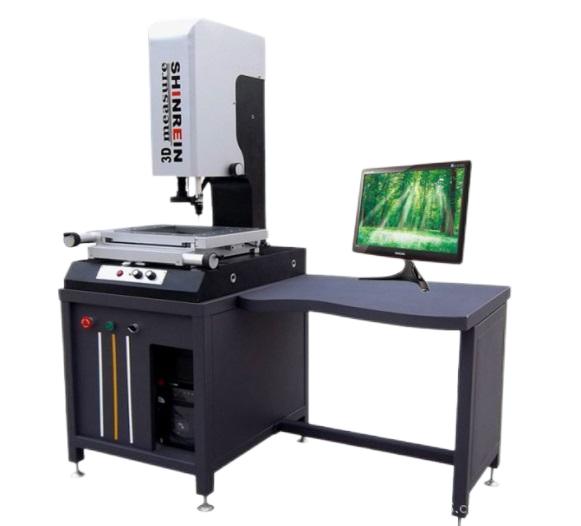

Projection Measurement
Review dimensional features against the inspection specification.

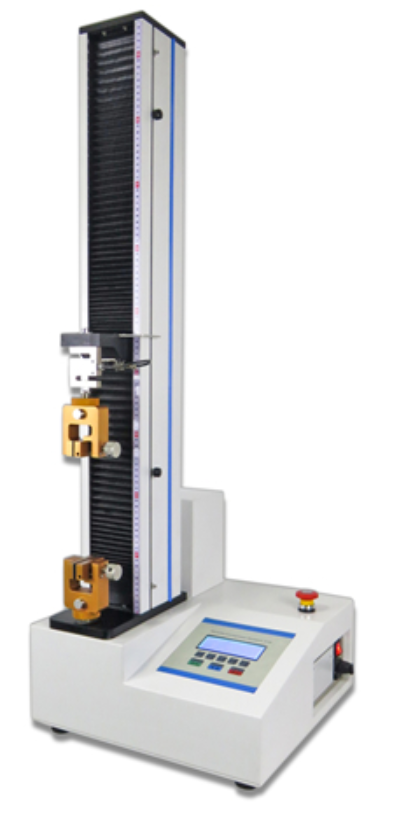

Tensile / Pull-Force Testing
Evaluate mechanical connection strength using the specified test method.

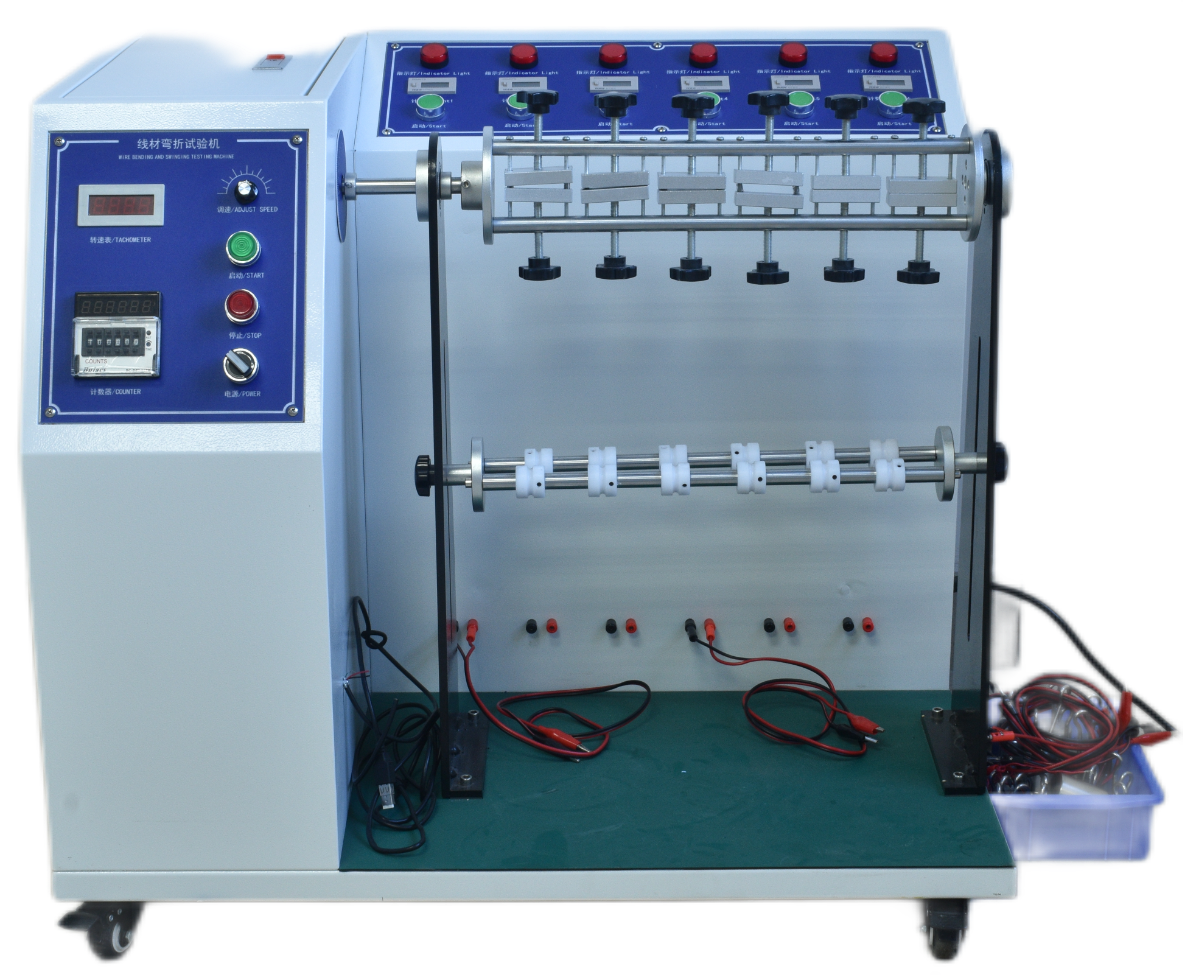

Bending Testing
Evaluate repeated bending behavior where a defined durability test is required.

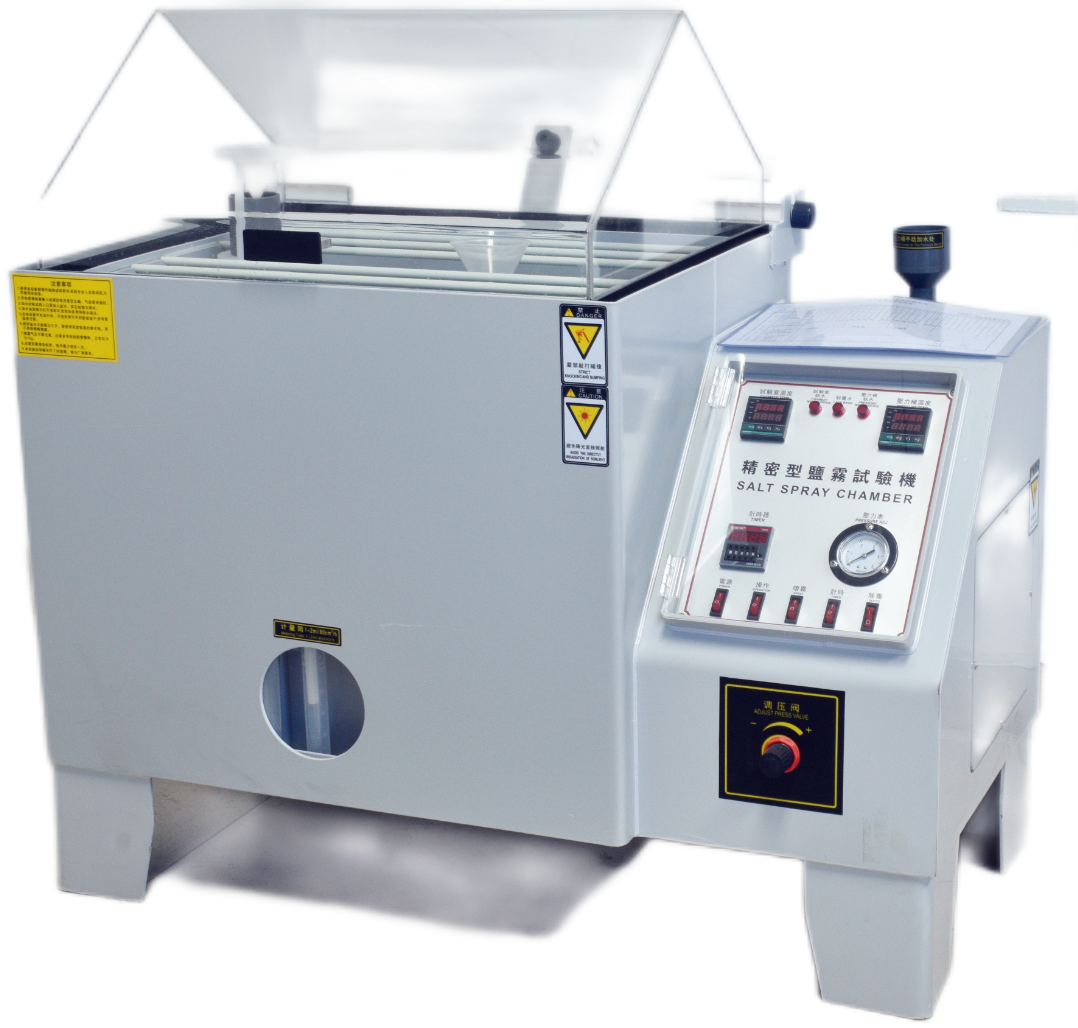

Salt Spray Testing
Assess selected components or assemblies under the specified salt spray conditions.

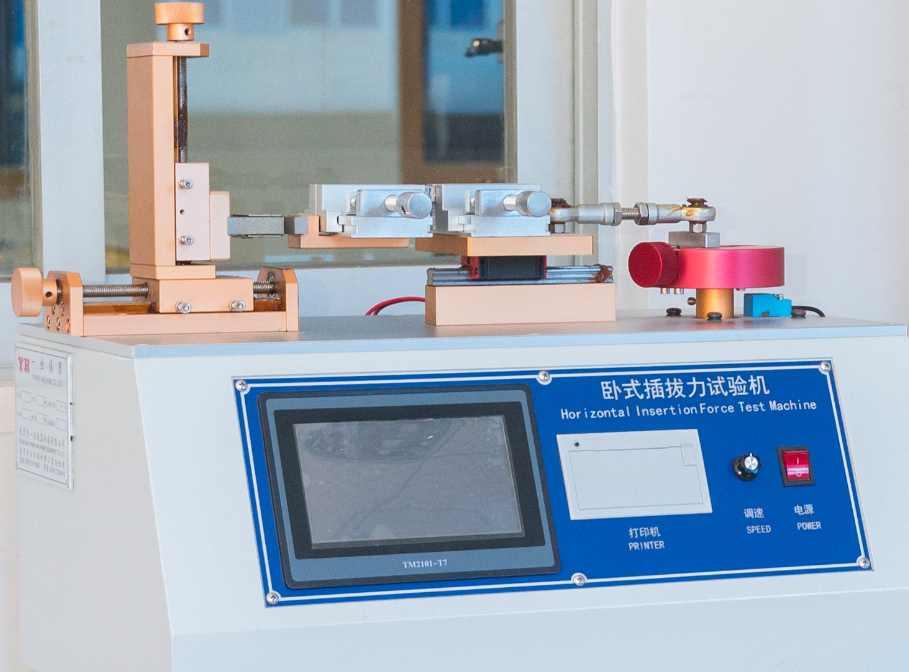

Plug-and-Pull Testing
Evaluate connector mating and unmating performance where specified.
Tests are selected according to product specifications and customer requirements; not every harness undergoes every listed test.
Additional electrical or compliance testing requirements can be reviewed and arranged according to an agreed customer test plan. Hi-pot, aging, flame and RoHS-related systems are not claimed as confirmed in-house equipment on this page.
The equipment images reproduce the resources listed in the 2026 company profile. Equipment availability does not imply a universal pass limit or certification for every finished assembly.
FROM REQUIREMENTS TO RELEASE
Manufacturing Workflow
XSD receives the customer’s approved electrical design, prepares and terminates the wires, integrates connectors and protective components, assembles the harness using appropriate production processes, and verifies the finished assembly using documented inspection resources.
- 01
Requirements Review
Confirm drawings, BOM, components, dimensions, environment, quantities and inspection criteria.
- 02
Manufacturing Route
Select wire preparation, termination, assembly, molding / protection and the inspection method.
- 03
Prototype / First Article
Review initial assemblies against the agreed specification before batch release where required.
- 04
Production & Process Checks
Carry out the approved manufacturing operations with checks defined for the project.
- 05
Final Inspection & Packaging
Review the finished assembly against the agreed acceptance and packaging requirements.
This is a general workflow, not a fixed lead-time commitment or a claim that every assembly requires every operation.
EQUIPMENT / FUNCTION / PROCESS
Wire Harness Manufacturing Equipment
The equipment matrix connects each documented machine to its manufacturing function. Open an image for the source illustration, or follow the process link for its role in harness production.
| Equipment | Manufacturing function | Evidence / process |
|---|---|---|
| Automatic Wire Cutting Machine | Wire length preparation | Process ↓ |
| Automatic Terminal Crimping Machine | Automated termination | Process ↓ |

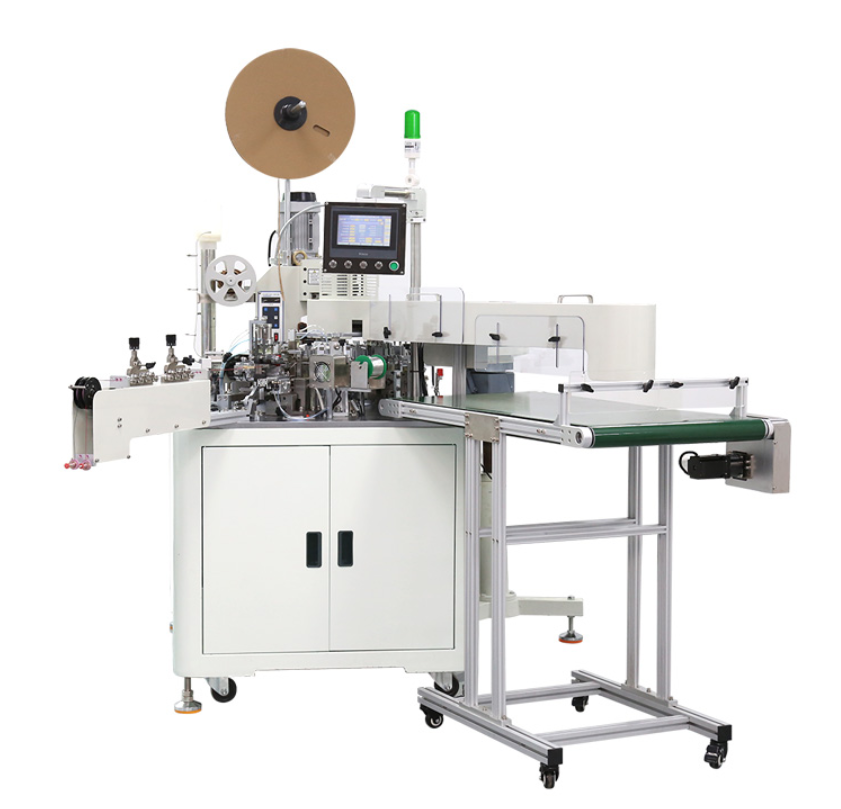

| Terminal Insertion Machine | Connector/terminal assembly | Process ↓ |

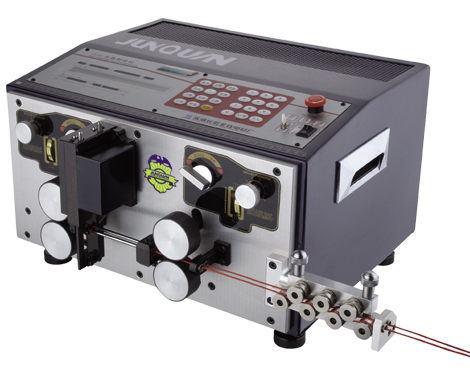

| Tube Cutter | Protective tube preparation | Process ↓ |
| Semi-Automatic Terminal Machines | Flexible crimp production | Process ↓ |
| Copper Strip Terminal Machine | Selected terminal connections | Process ↓ |
| RJ45 Crimping Machine | RJ45 assembly | Process ↓ |

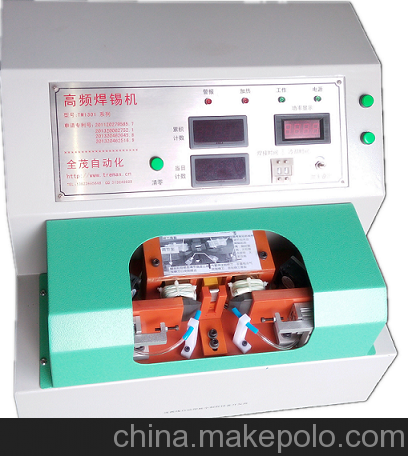

| HDMI High-Frequency Soldering Machine | Selected soldered cable assemblies | Process ↓ |

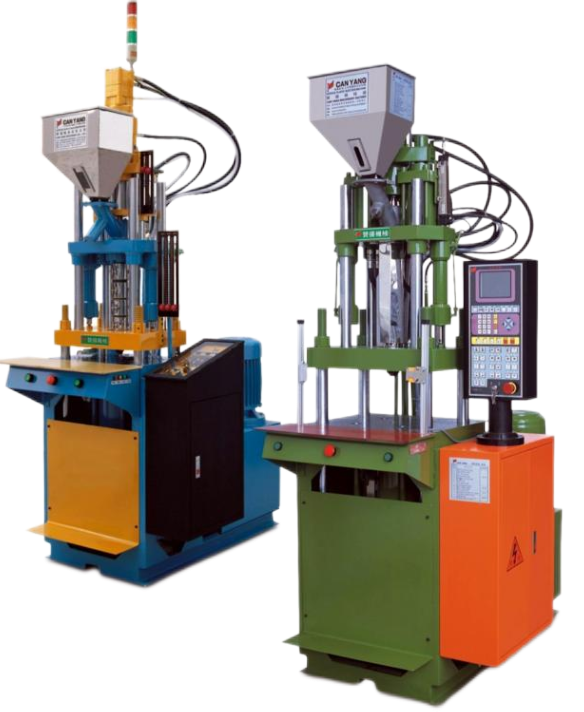

| 2.5T Vertical Injection Molding Machine | Molded cable/components | Process ↓ |

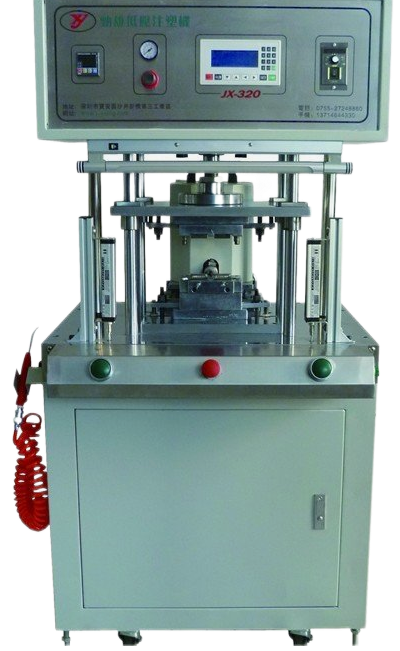

| Low-Pressure Injection Molding Machine | Selected encapsulation/overmolding | Process ↓ |

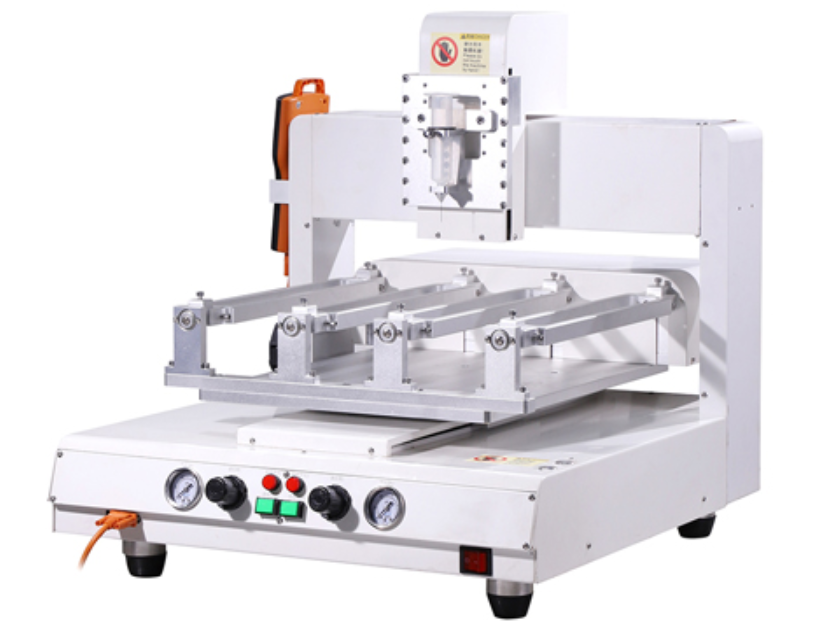

| UV Dispensing Machine | Controlled dispensing applications | Process ↓ |
Machine types establish documented processing resources. Wire sizes, dimensional tolerances, tooling compatibility and production limits are reviewed for the individual project.
CONNECT CAPABILITY TO APPLICATION
Industries Supported by Our Manufacturing Capabilities
The manufacturing route is selected for the electrical connections, routing, installation space and operating environment of the equipment—not simply for an industry label.
Automotive
Specified terminal connections, circuit positions and connector housings.
Industrial Equipment
Control, signal and equipment connections with application-specific protection.
Energy Storage
Power interconnections with agreed conductor, terminal and inspection requirements.
Agricultural Machinery
Multi-branch routing, protective sleeves and mounting components.
Medical Equipment
Specified cable interfaces and inspection criteria for equipment applications.
Robotics
Moving-equipment connections with routing and durability requirements defined for the application.
Robotics links to the existing Industries hub until a dedicated page is available. Energy storage links to the established energy page. No unbuilt capability subpages are linked.
DRAWING TO MANUFACTURING REVIEW
What We Need to Manufacture Your Custom Wire Harness
XSD manufactures build-to-print wire harnesses according to customer-approved drawings, BOMs and specifications. Clear technical inputs allow the team to review the manufacturing route and acceptance requirements before production.
You provide
- 2D drawing
- Wiring diagram
- BOM
- Connector part numbers
- Terminal specifications
- Wire requirements
- Assembly dimensions
- Annual / order quantity
- Application environment
- Required inspection criteria
- Sample, where available
XSD reviews
- Wire preparation
- Terminal process
- Connector compatibility
- Harness routing
- Protective components
- Molding requirements
- Manufacturing sequence
- Inspection method
- Packaging requirements
Have drawings, a BOM or a sample reference ready?
ENGINEERING & PROCUREMENT QUESTIONS
Frequently Asked Questions
What information do you need to manufacture a custom wire harness?
Please provide the drawing or wiring diagram, BOM, connector and terminal part numbers, wire requirements, assembly dimensions, order or annual quantity, application environment and required inspection criteria. A sample can help clarify details when available.
Can you manufacture from a drawing or existing sample?
XSD manufactures build-to-print wire harnesses according to customer-approved drawings, BOMs and specifications. An existing sample can support the review, but the required materials, dimensions, connections and acceptance criteria should be agreed before production.
What terminal crimping capabilities do you have?
The company profile documents automatic terminal crimping, semi-automatic terminal machines and a copper strip terminal machine. Equipment selection depends on the wire size, terminal geometry, volume and project requirements. Crimp requirements are evaluated against the approved terminal and project specification.
Do you provide cable overmolding?
Documented resources include a 2.5T vertical injection molding machine and low-pressure injection molding equipment. Molding suitability, materials, tooling and protection requirements are reviewed for each assembly. Environmental performance depends on the approved design, materials and validation requirements.
What wire harness testing can you perform?
Documented resources include wire sequence, DC resistance and harness electrical testing; CCD and dimensional inspection; terminal cross-section, tensile and plug-and-pull testing; bending and salt spray equipment. Tests are selected to match the approved specification, not applied universally to every harness. Additional electrical or compliance testing requirements can be reviewed for an agreed test plan.
Can XSD support prototypes before production?
Prototype and first-article builds can be reviewed before batch production. The build scope, components, quantities, timing and acceptance criteria must be agreed for the project; there is no universal prototype lead time or minimum order stated here.
Can you manufacture complex multi-branch harnesses?
Multi-branch harnesses can be reviewed from the customer’s circuit architecture, connector selection, wire sizes, branch lengths, sleeves, labels and mounting details. Assembly routing and the inspection method are confirmed against the approved product requirements.
BUILD TO YOUR APPROVED SPECIFICATION
Start Your Custom Wire Harness Project
Send your drawing, BOM, wiring diagram or sample information for manufacturing review. Our team can clarify the process, component and inspection requirements and prepare a quotation based on your project details.
